Horizontal Openwell

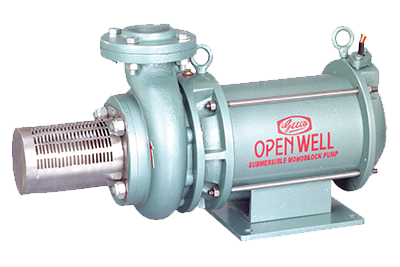

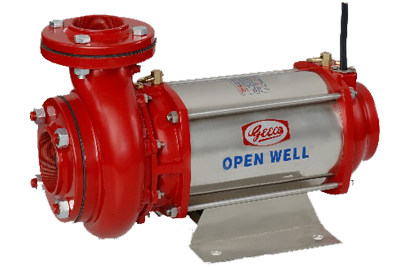

HORIZONTAL OPEN WELLSUBMERSIBLE PUMP
Surface Mono block pumps were used to pump water from wells, need frequent maintenance like bearing lubrication, Foot valve maintenance, and shifting according to water level changes. Their windings and bearing tend to fail if well water enter inside. These open well submersible pumps eliminates all the above said maintenance troubles and give a better performance.

Features:

  • Withstands Wide voltage fluctuations (250 to 450 Vols)
  • Special Journal bearings and Thrust bearings give trouble free performance
  • Stainless steel shaft
  • Option of Stain less steel and treated steel body
  • No need of Foot valve or priming of pump
  • Noise less operation
  • No pump room required. You save the space

Applications:

  • Agricultural irrigation
  • Industrial water supply
  • Residential buildings
  • Water supply schemes

Range

ZEN series

Power3hp to 10hp
Head up to 150 feet (45 mts)
Discharge up to 2300 LPM

JUMBO Series

Power12.5hp to 20hp
Head Up to 200 feet (60 mts)
Discharge2550 LPM (42 LPS)
