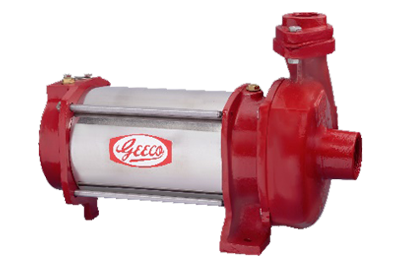

Domestic Openwell

Suitable for domestic, Small farms, commercial buildings etc. Made with Stainless steel Body and single stage Horizontal end suction type pump makes the pump simple, cost effective and gives maximum efficiency.


  • Domestic water pumping from sumps and open wells
  • Small hotels & restaurants
  • Garden watering
  • Small industrial water supply
  • Other applications where water requirement is around 50 to 500 LPM
  • No suction pipe, foot valve required
  • No priming problem
  • More power savings


  • Full Stainless steel Body
  • Back pull out design for easy service without disturbing pipe line
  • Graphite carbon bearing for long life
  • High efficiency
  • No suction and priming problems
  • No space or pump room required
  • Noise less operation
  • Easy to install, dismantle and service


Motor power0.5hp to 2hp
Speed 2900 RPM
Power sourceAC Single phase 230 Volts 50Hz
AC Three Phase 415 Volts, 50Hz(1hp to 30hp)
Type of dutyS₁ (Continuous)
Winding typeWet type (rewindable)
Pump Type Centrifugal Mono shaft construction
Maximum Head 32 mts
Maximum Discharge580 LPM


Download Performance Chart
