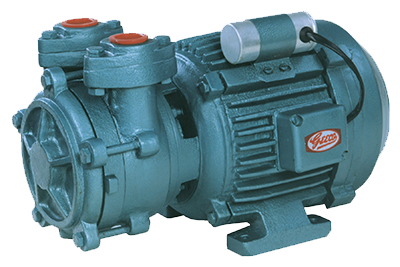

Super suction pump GMS Series ( 1440 RPM)
GMS model Regenerative pumps Self priming type. No need of a foot valve in the suction end. being a regenerative pump this pump has a good suction capacity and can be used in places where foot valve cannot be used in the suction end. Slow speed (1440 RPM) motor for trouble free long life
GMS model Regenerative pumps Self priming type. No need of a foot valve in the suction end. being a regenerative pump this pump has a good suction capacity and can be used in places where foot valve cannot be used in the suction end. Slow speed (1440 RPM) motor for trouble free long life
APPLICATIONS
- Domestic water supply
- To pump water from water supply pipes
- Pressure booting application
- Small buildings
FEATURES
- 4 Pole (1440 RPM) heavy duty Motor
- Brass forged impellers for rust free long life
- Flange type Suction and delivery for easy maintenance
- Wide voltage range 140 to 250 Volts
- Very low power consumption
- 2 Pole CSCR Motor for trouble free service
- Very low noise levels
- Rigid construction
SPECIFUCATIONS
| Motor Power | 0.5hp & 1hp |
| Power supply | AC 230 Volts 50Hz Single phase power supply |
| Pipe size | Sucton 1 inch x Delivery 1” |
| Max total head | 120 feet (36 meters) |
| Discharge | Up to 60 LPM |
| Rating | S₁ rating ( continuous) |
Download Performance Chart
