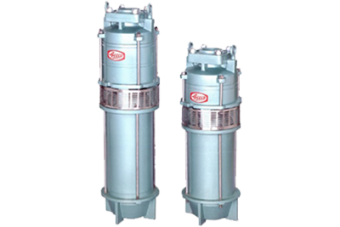

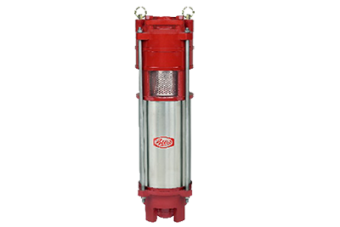

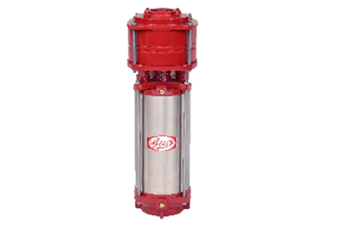

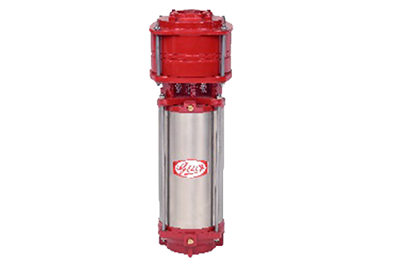

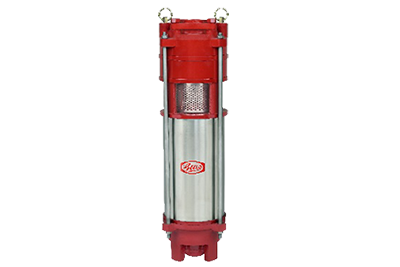

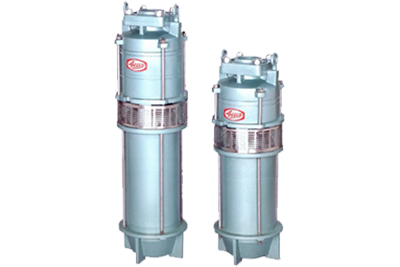

Vertical Openwell

Vertical multi stage pump mounted above heavy duty motor with suitable thrust bearings to counter the pump operating thrust load.



  • Agriculture irrigation
  • Commercial building service
  • Public Water supply schemes
  • Industrial water supply
  • Rural water supply


  • Vertical construction for increased bearing life
  • Full stainless steel shaft for corrosion free long life
  • Mono shaft design for trouble free noise less operation
  • Copper Cage rotor for high efficiency and long life
  • No suction & priming problem
  • No need of Pump House
  • Standardized parts. Easily serviceable


Motor power 1 hp to 30hp
Speed 2900 RPM
Power sourceAC Single phase 230 Volts 50Hz (up to 3hp)
AC Three Phase 415 Volts, 50Hz(1hp to 30hp)
Type of duty S₁ (Continuous)
Winding type Wet type (rewindable)
Starting Method: up to 7.5hp – Direct On line 10hp and above- star delta
Pump Type Mono shaft Multi Stage construction
Maximum Head 680 feet
Maximum Discharge 1260 LPM

Download Performance Chart
