GMH Pump

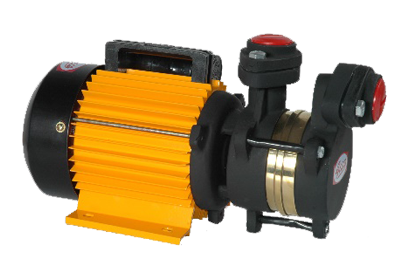

SUPER SUCTION Pump: GMH series (High Speed)
GMH model Regenerative pumps Self priming type. No need of a foot valve in the suction end.
being a regenerative pump this pump has a good suction capacity and can be used in places where foot valve cannot be used in the suction end.

APPLICATIONS

  • Domestic water supply
  • To pump water from water supply pipes
  • Pressure booting application
  • Small buildings

FEATURES

  • High Speed Motor- Compact size
  • Brass forged Volute and impellers for rust free long life
  • Flange type Suction and delivery for easy maintenance
  • Wide voltage range 140 to 250 Volts
  • Very low power consumption
  • 2 Pole CSCR Motor for trouble free service

SPECIFICATIONS

Motor Power 0.5hp
Power supply AC 230 Volts 50Hz Single phase power supply
Pipe sizeSucton 1 inch x Delivery 1”
Max total head 110 feet (34 meters)
Discharge28 LPM at 50 feet ( 15 meters)
Rating S₁ rating ( continuous)
