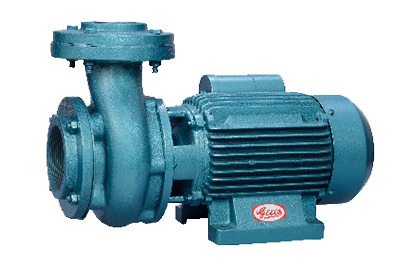

Junior Centrifugal Monblock Pump

GEECO Junior centrifugal Monblock pump suitable for irrigating small farm and houses with single phase 230 Volts power supply. Made of quality raw materials and made with skilled workmanship, these pumps give a trouble free performance. Made with Copper windings with Class B insulation, this pump give trouble free service. Suitable for domestic water supply , gardening and small farming applications.

Application:

  • Can be used to pump clear cold water for any application
  • For domestic water supply
  • Small industrial application
  • Small farms
  • Garden irrigation
  • Commercial building

FEATURES

  • Rigid cast iron construction
  • Made with quality raw materials to give best efficiency
  • Impellers and rotors dynamically balanced for trouble free performance.
  • Good suction lift .
  • Back pull-out type for easy servicing without disturbing pipe line
  • Sold mono shaft construction
  • Single phase motors with Thermal overload protector give extra safety to windings
  • Low friction Carbon ceramic seal

Specifications

Motor power 0.5hp hp to 2hp
Speed 2900 RPM
Power sourceAC 230 Volts Single phase & AC 415 Volts Three Phase
Type of duty S₁ (Continuous)
Pump Type Radial Flow & Mixed Flow
Maximum Head 80 feet
Maximum Discharge 510 LPM
Pump Size 1”x 1” to 3”x2½”

Download Performance Chart
