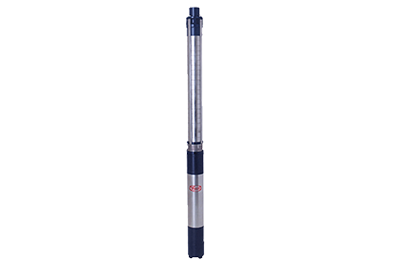

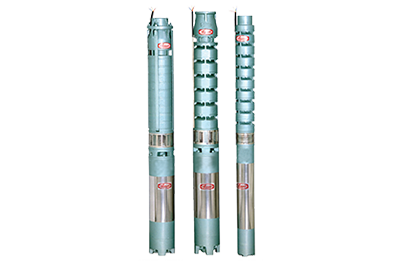

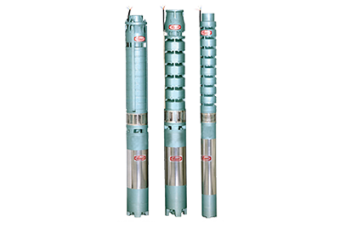

Submersible Pumps for 6 inch Bore

Most commonly used pump to pump out water from deep bore wells of 150mm and above. Available with Mixed Flow ( for high Dischare up to 1250 LPM, Head up to 167 mts) and Radial flow (Discharge up to 420 LPM & Delivery head up to 333 mts).

   APPLICATIONS:

  • Domestic water supply
  • Agricultural irrigation
  • Industrial water supply
  • Gardens and mining
  • Fire fighting
  • Pressure boosting

    FEATURES

  • Special Grade casting to withstand corrosion and erosion
  • Stainless steel shaft with copper Rotor assures long trouble free performance
  • 50 feet head per stage in specific models
  • Dynamically balanced rotating parts ensures minimum vibrations and longer life.
  • Windings designed to withstand wide voltage fluctuations
  • Impellers designed for maximum performance
  • Motors prefilled with special coolant for better lubrication and cooling
  • Self aligning, self lubricating carbon thrust bearings give better performance at Low voltages, High Wear Resistance and withstand high thrust loads
  • Components designed for maximum durability and machined to close tolerances for best performance

SPECIFICATIONS

Motor power 3hp to 20hp
Speed 2900 RPM
Power source415 Volts, 3 phase , 50Hz power supply
Maximum outer dia142mm
Type of duty S₁ (Continuous)
Winding type Wet type (rewindable)
Starting MethodUp to 7.5hp – Direct On line 10hp and above- star delta
Pump Type Radial Flow & Mixed Flow
Maximum Head 1100 feet
Maximum Discharge 1250 LPM
